project scope Fully-Automated Home Fragrance Wall-Plug Assembly
This project was presented to SDC by a manufacturer looking for an assembly machine that would provide a significant efficiency increase compared to their existing equipment. The customer was also looking for an increase in production capacity as the final wick assemblies were to feed a new high-speed home fragrance wall-plug production line.
sdc's solution

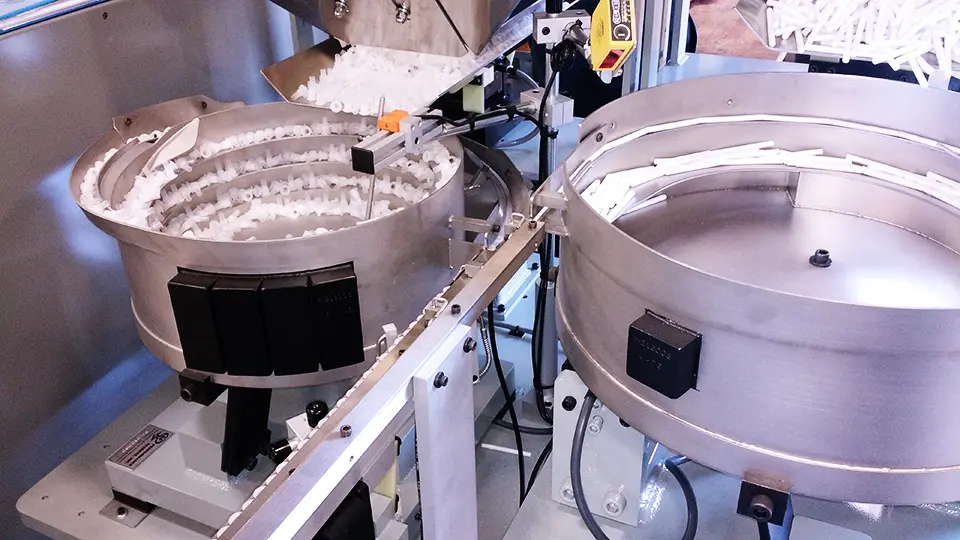

SDC chose a two-sided (mirror image) rotary indexing machine with each side producing 70 parts per minute for a total capacity of 140 parts per minute. The servo driven indexing dial provided a precision platform for the assembly operations. The three components were bulk fed into the machine using vibratory bowl feeders. The delivery of each component to the machine was verified using a sensor or vision camera.

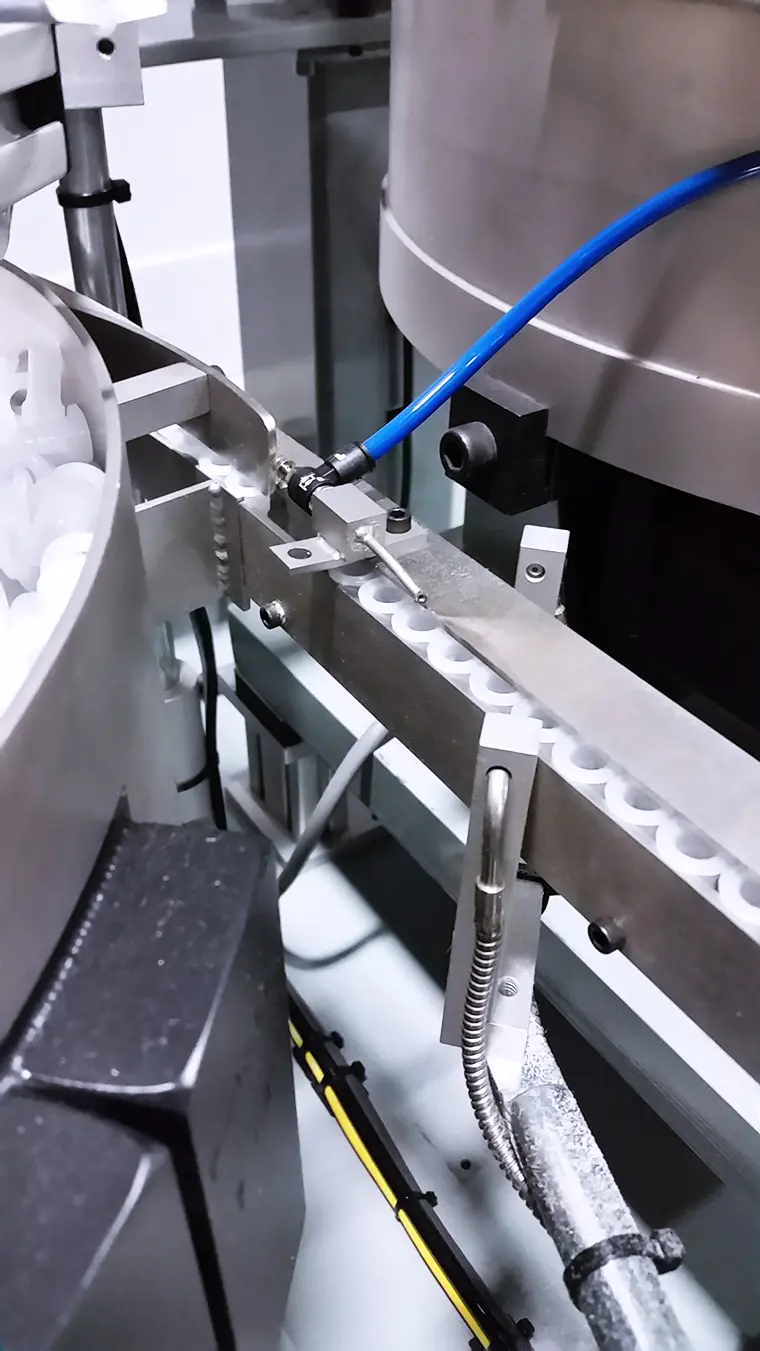

The machine was equipped with one high speed pneumatic nail inserter per side that was used to complete the wick assembly. A custom escapement was designed to delivery the nail to the inserter from the vibratory bowl.
The result was a fully automated assembly machine that met the customers efficiency and capacity goals presented at the beginning of the project. The success of the project led to the customer ordering two more duplicate machines less than a year later to meet increased demand.
140
machine rate of 140 completed assemblies per minute
what's included machine details
- Servo driven rotary indexing dial
- Keyence vision inspection systems
- Allen Bradley PLC & HMI
- AMCI Ethernet IP based stepper motors
- Festo Ethernet IP valve manifolds with remote I/O
- Vibratory parts feeding
- Pneumatic nail insertion
- Complete machine safety system
- Remote plant connectivity
